THINKCAR T-Wand 100 RDKS/TPMS Tool

Description

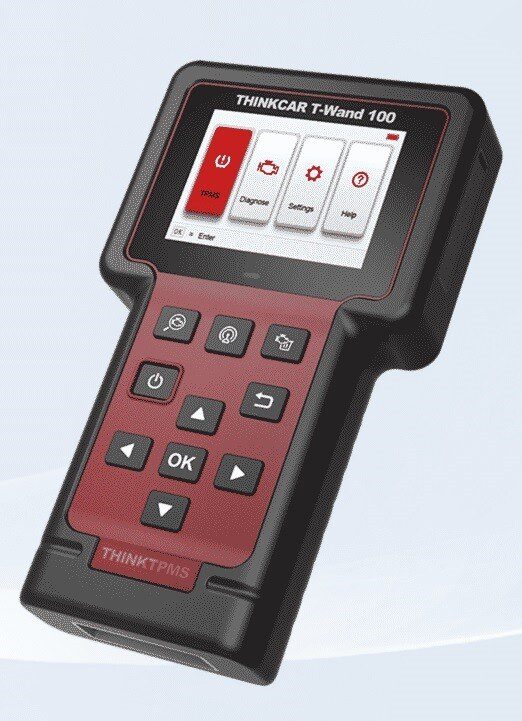

THINKCAR T-wand 100

The THINKCAR T-wand 100 is a professional TPMS (Tire Pressure Monitoring System) service tool developed by THINKCAR. It offers comprehensive features for reading, learning, and programming TPMS sensors, making it ideal for workshops and automotive enthusiasts.

Key Features:

• Bluetooth Sensor Reading: Reads TPMS sensor data wirelessly via Bluetooth.
• OBD Sensor Relearn & Programming: Supports TPMS sensor relearning and programming through the vehicle’s OBD port.
• Free Updates via MicroSD Card: Keep the tool up-to-date with free software updates.

Sensor Activation Function:

Activates TPMS sensors to display essential data such as:

• Sensor ID
• Tire pressure
• Sensor frequency
• Tire temperature
• Battery status

Multi-Sensor Programming:

The THINKTPMS T100 allows cloning or programming of sensor data onto replacement sensors. It supports THINKCAR TPMS sensors and enables the replacement of faulty sensors. Up to 8 sensors can be programmed simultaneously.

Relearn Function:

The relearn feature stores newly programmed sensor IDs in the vehicle’s ECU via the OBD2 port, ensuring the system recognizes the new sensors.

• EOBD Mode Engine Diagnostics: Basic engine diagnostics can be performed using an OBD2 cable.

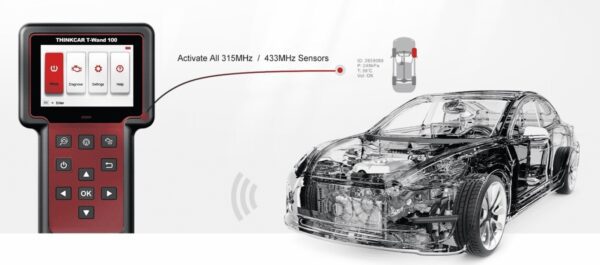

• Supports Frequencies: 315 MHz and 433 MHz.

Package Contents:

• THINKCAR T-wand 100
• 4 TPMS Sensors (433 MHz and 315 MHz)
• USB Type-C Cable
• Charger
• OBD2 Cable (1.2 m)
• User Manual (English)
• Free online updates via MicroSD card

Specifications:

• Model: THINKCAR T-wand 100

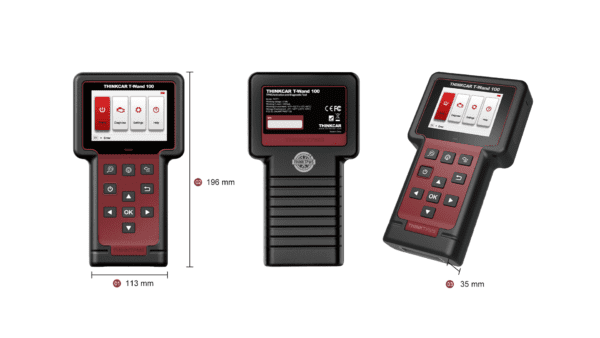

• Dimensions: 113 x 196 x 35 mm
• OBD Cable Length: 1.2 m
• Updates: Via SD card or computer
• Battery Capacity: 3100 mAh / 3.8 V
• Screen Size: 3.5 inches
• Supported Languages: English, French, Spanish, German, Russian

The THINKCAR T-wand 100 offers a complete TPMS solution with advanced sensor functions, making it a reliable tool for tire pressure monitoring and basic engine diagnostics.
